HB-25000-SB: 25GigE camera with Sony Pregius S IMX530

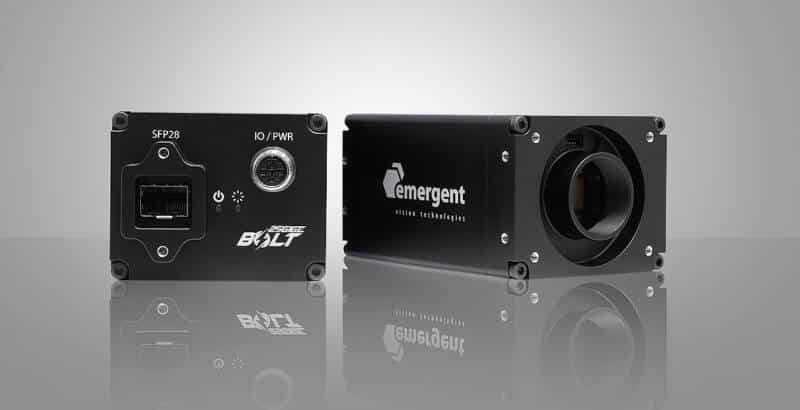

HB-25000-SB: 24.47MP 25GigE camera with Sony Pregius S IMX530

HB-25000-SB features the Sony Pregius S IMX530 sensor. The Sony Pregius S technology features back-illuminated pixel structure that delivers distortion-free, high imaging performance and miniaturization. At full resolution (5320 x 4600) you get 105 frames per second. Its ultra high-speed 25GigE SFP28 interface offers many benefits including low-cost accessories, low CPU overhead, low latency, low jitter, and accurate multi-camera synchronization using IEEE1588. In addition, 25GigE SFP28 offers three supported cabling options for cable lengths from 1M to 10KM.

Winner: Vision Systems Design Innovators Award 2020 – Silver

Benefits

  • High-speed 25GigE SFP28

  • RoCEv2, RDMA, GigEVision® 3.0 firmware available. GenICam™ compliant.

  • Back-illuminated pixel structure
  • 25x the speed of GigE
  • Available in monochrome (HB-25000-SB-M), and color (HB-25000-SB-C)
  • Optional IP67 housing

Applications

  • Industrial Inspection

  • Automation

  • Intelligent Transportation Systems

  • Logistics

  • Virtual Reality

  • Volumetric Capture

  • Referee Assist
Sensor IMX530
Resolution 5320 x 4600
Megapixels 24.47MP
Sensor Type 19.3mm CMOS (Type 1.2)
Max Frame Rate 105fps (8-bit) | 73fps (12-bit)
Cell Size 2.74 x 2.74μm
Standard Mount C Mount
Shutter Global
Bit Depth 8 & 12-bit
GPIO / Triggering 3 in, 3 out Software, External (Pulse or Edge)
Interface 25GigE SFP28
Exposure/Integration* 5µs-1s
Dynamic Range 74 dB
Monochrome Modes Mono8, Mono12, Mono12Packed
Color Modes RGB8, BGR8, YUV411, YUV422, YUV444
Raw Modes BayerRG8, BayerRG12, BayerRG12Packed
Operating System Windows (64-bit), Linux (64-bit)
Vision Standards
GigE Vision 3.0, RDMA, RoCEv2, GenICam
Regulatory
CE, FCC, RoHS, WEEE
Power Requirements 12W, 12V
Operating Temperature -20°C – +50°C
Storage Temperature -30°C – +60°C
Dimensions & Weight 97 x 66 x 52mm – 500g
Warranty 3 Years

*all minimum exposure specs can vary from what is listed based on the limitations of each sensor as per notice from the manufacturer.

Product Notifications

Log in to get full access to our camera resources and receive an email notification when new manuals, software and firmware versions has been released.

Login

Mechanical Drawings

97mm x 66mm x 52mm

BOLT HB Series 25GigE industrial camera mechanical drawings and dimensions.

Technical Details

HB-25000-SB: 25GigE camera QE Mono Sony Pregius S IMX530

Quantum Efficiency – Sony Mono



HB-25000-SB: 25GigE camera QE Color Sony Pregius S IMX530

Quantum Efficiency – Sony Color
