THEIA 10GigE Network Interface Cards

THEIA 10GigE Network Interface Cards deliver high-performance data transport optimized for cost-effective machine vision and imaging systems. Available in quad-port 10GigE RJ45 configurations, THEIA cards maximize camera throughput while minimizing CPU and memory usage for low-latency, real-time operation. Built on PCIe Gen3 x8 interfaces and equipped with a 5V TTL trigger port, they enable precise synchronization and efficient multi-camera processing, lowering the cost and complexity of 10GigE deployment using EROS cameras.

Full support for 10GigE EROS cameras, which provides 10, 5, 2.5 and 1GigE imaging via auto-negotiation to network speed.
RJ45 Power Over Ethernet (POE)
GigE Vision 3.0 and RDMA compliant
Zero-copy
FPGA-based
NVIDIA GPU Direct capable for seamless GPU-to-GPU communication
Sync to 1µs using IEEE1588
Operating System: Linux or Windows

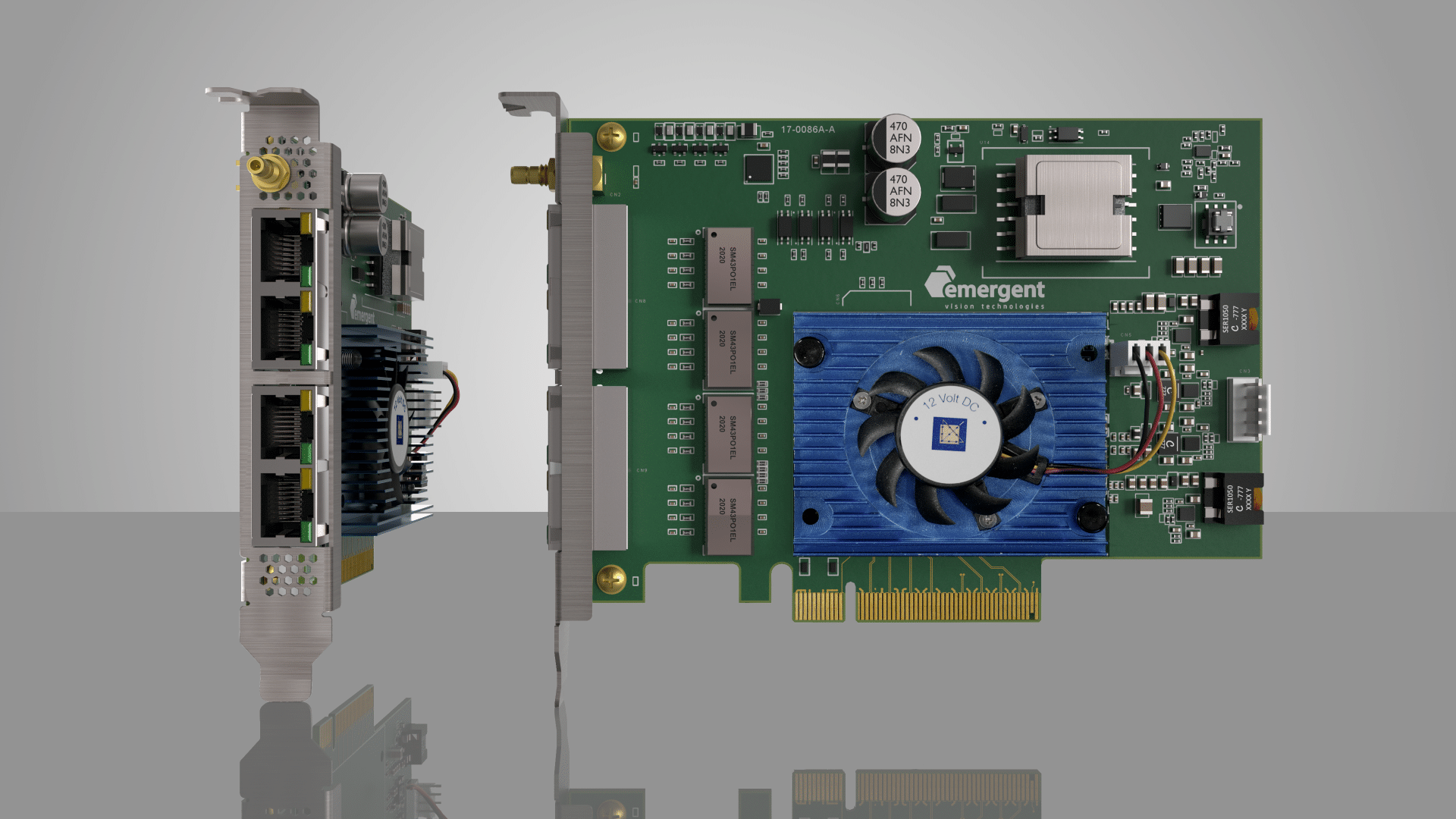

THEIA 10GigE PT-10-QUAD Network Interface Card

Benefits

Most optimal performance for any video stream
Absolute minimal CPU and system memory utilization
Absolute lowest latency and jitter
Absolute best price performance and no licensing
Full Ethernet network compatibility
CPU offloading
Real time front panel trigger port
GPUDirect
Camera multiplexing with switches

Applications

Machine Vision
Automated Optical Inspection (AOI)
Virtual Reality / Volumetric Capture
AI / Deep Learning / Machine Learning
NVMe Storage

Card Model	PT-10-QUAD
PCIe	PCIe Gen3 x8
Ethernet	Quad-Port 1, 2.5, 5, 10GigE RJ45
Compliance	FCC, CE, RoHS
Environmental	0-45°C
OS	Windows, Linux
Trigger	5V TTL input
NVIDIA GPUDirect	Yes
Zero-copy	Yes
